HSC-Fräser Z2 ZR · rechtsdrall - rechtsschneidend
Details
102
- Artikelgruppe:
- 102
- Spanrichtung:
- Rechts
- Schneidrichtung:
- Rechts
- Spirale:
- -
- Sockel Typ:
- HA
- Zähnezahl:
- 2
- Beschichtung:
- -

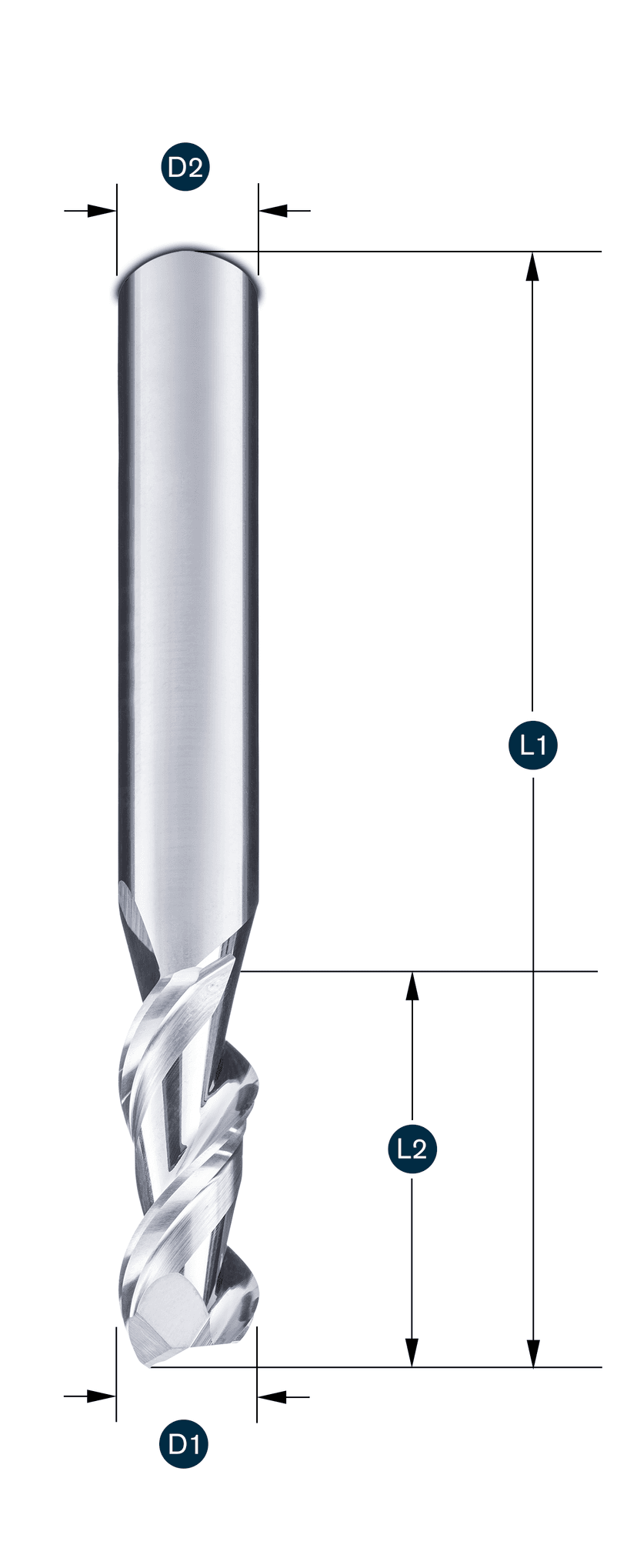

| Produktname | D1 | D2 | L1 | L2 | Aktion |
|---|
| 102020020-55 | 2 | 2 | 40 | 8 | |
| 102020020-14 | 2 | 2 | 40 | 8 | |
| 102020020-30 | 2 | 2 | 40 | 8 | |
| 102020020-45 | 2 | 2 | 40 | 8 | |
| 102KK020-55 | 2 | 3 | 50 | 3 | |
| 102KK020-45 | 2 | 3 | 50 | 3 | |
| 102KK020-14 | 2 | 3 | 50 | 3 | |
| 102KK020-30 | 2 | 3 | 50 | 3 | |
| 102A020030-30 | 2 | 3 | 50 | 10 | |
| 102A020030-14 | 2 | 3 | 50 | 10 | |
| 102A020030-45 | 2 | 3 | 50 | 10 | |
| 102A020030-55 | 2 | 3 | 50 | 10 | |
| 102030030-30 | 3 | 3 | 40 | 12 | |
| 102030030-14 | 3 | 3 | 40 | 12 | |
| 102030030-45 | 3 | 3 | 40 | 12 | |
| 102030030-55 | 3 | 3 | 40 | 12 | |
| 102KK030-14 | 3 | 3 | 50 | 4 | |
| 102KK030-55 | 3 | 3 | 50 | 4 | |
| 102KK030-45 | 3 | 3 | 50 | 4 | |
| 102KK030-30 | 3 | 3 | 50 | 4 | |
| 102K030030-30 | 3 | 3 | 50 | 10 | |
| 102K030030-45 | 3 | 3 | 50 | 10 | |
| 102K030030-55 | 3 | 3 | 50 | 10 | |
| 102K030030-14 | 3 | 3 | 50 | 10 | |
| 102L030030-14 | 3 | 3 | 60 | 16 | |
| 102L030030-30 | 3 | 3 | 60 | 16 | |
| 102L030030-55 | 3 | 3 | 60 | 16 | |
| 102L030030-45 | 3 | 3 | 60 | 16 | |
| 102A030060-30 | 3 | 6 | 50 | 12 | |
| 102A030060-55 | 3 | 6 | 50 | 12 | |
| 102A030060-45 | 3 | 6 | 50 | 12 | |
| 102A030060-14 | 3 | 6 | 50 | 12 | |
| 102040040-45 | 4 | 4 | 40 | 14 | |
| 102040040-14 | 4 | 4 | 40 | 14 | |
| 102040040-30 | 4 | 4 | 40 | 14 | |
| 102040040-55 | 4 | 4 | 40 | 14 | |
| 102KK040-55 | 4 | 4 | 50 | 5 | |
| 102KK040-14 | 4 | 4 | 50 | 5 | |
| 102KK040-30 | 4 | 4 | 50 | 5 | |
| 102KK040-45 | 4 | 4 | 50 | 5 | |
| 102K040040-55 | 4 | 4 | 50 | 12 | |
| 102K040040-45 | 4 | 4 | 50 | 12 | |
| 102K040040-30 | 4 | 4 | 50 | 12 | |
| 102K040040-14 | 4 | 4 | 50 | 12 | |
| 102L040040-14 | 4 | 4 | 60 | 18 | |
| 102L040040-55 | 4 | 4 | 60 | 18 | |
| 102L040040-45 | 4 | 4 | 60 | 18 | |
| 102L040040-30 | 4 | 4 | 60 | 18 | |
| 102A040060-55 | 4 | 6 | 50 | 14 | |
| 102A040060-45 | 4 | 6 | 50 | 14 | |
| 102A040060-30 | 4 | 6 | 50 | 14 | |
| 102A040060-14 | 4 | 6 | 50 | 14 | |
| 102KK050-55 | 5 | 5 | 50 | 6 | |
| 102KK050-45 | 5 | 5 | 50 | 6 | |
| 102KK050-14 | 5 | 5 | 50 | 6 | |
| 102KK050-30 | 5 | 5 | 50 | 6 | |
| 102050050-55 | 5 | 5 | 50 | 16 | |
| 102050050-45 | 5 | 5 | 50 | 16 | |
| 102050050-30 | 5 | 5 | 50 | 16 | |
| 102050050-14 | 5 | 5 | 50 | 16 | |
| 102H050050-30 | 5 | 5 | 60 | 20 | |
| 102H050050-55 | 5 | 5 | 60 | 20 | |
| 102H050050-14 | 5 | 5 | 60 | 20 | |
| 102H050050-45 | 5 | 5 | 60 | 20 | |
| 102L050050-30 | 5 | 5 | 75 | 25 | |
| 102L050050-55 | 5 | 5 | 75 | 25 | |
| 102L050050-14 | 5 | 5 | 75 | 25 | |
| 102L050050-45 | 5 | 5 | 75 | 25 | |
| 102A050060-55 | 5 | 6 | 50 | 16 | |
| 102A050060-14 | 5 | 6 | 50 | 16 | |
| 102A050060-30 | 5 | 6 | 50 | 16 | |
| 102A050060-45 | 5 | 6 | 50 | 16 | |
| 102KK060-45 | 6 | 6 | 50 | 7 | |
| 102KK060-55 | 6 | 6 | 50 | 7 | |
| 102KK060-14 | 6 | 6 | 50 | 7 | |
| 102KK060-30 | 6 | 6 | 50 | 7 | |
| 102060060-55 | 6 | 6 | 50 | 18 | |
| 102060060-30 | 6 | 6 | 50 | 18 | |
| 102060060-14 | 6 | 6 | 50 | 18 | |
| 102060060-45 | 6 | 6 | 50 | 18 | |
| 102H060060-14 | 6 | 6 | 65 | 25 | |
| 102H060060-45 | 6 | 6 | 65 | 25 | |
| 102H060060-55 | 6 | 6 | 65 | 25 | |
| 102H060060-30 | 6 | 6 | 65 | 25 | |
| 102L060060-30 | 6 | 6 | 75 | 35 | |
| 102L060060-14 | 6 | 6 | 75 | 35 | |
| 102L060060-45 | 6 | 6 | 75 | 35 | |
| 102L060060-55 | 6 | 6 | 75 | 35 | |
| 102A060080-30 | 6 | 8 | 63 | 20 | |
| 102A060080-14 | 6 | 8 | 63 | 20 | |
| 102A060080-45 | 6 | 8 | 63 | 20 | |
| 102A060080-55 | 6 | 8 | 63 | 20 | |
| 102KK080-45 | 8 | 8 | 50 | 9 | |
| 102KK080-14 | 8 | 8 | 50 | 9 | |
| 102KK080-55 | 8 | 8 | 50 | 9 | |
| 102KK080-30 | 8 | 8 | 50 | 9 | |
| 102080080-30 | 8 | 8 | 63 | 20 | |
| 102080080-14 | 8 | 8 | 63 | 20 | |
| 102080080-45 | 8 | 8 | 63 | 20 | |
| 102080080-55 | 8 | 8 | 63 | 20 | |
| 102H080080-45 | 8 | 8 | 75 | 30 | |
| 102H080080-55 | 8 | 8 | 75 | 30 | |
| 102H080080-30 | 8 | 8 | 75 | 30 | |
| 102H080080-14 | 8 | 8 | 75 | 30 | |
| 102L080080-45 | 8 | 8 | 100 | 40 | |
| 102L080080-55 | 8 | 8 | 100 | 40 | |
| 102L080080-30 | 8 | 8 | 100 | 40 | |
| 102L080080-14 | 8 | 8 | 100 | 40 | |
| 102100100-14 | 10 | 10 | 72 | 25 | |
| 102100100-30 | 10 | 10 | 72 | 25 | |
| 102100100-45 | 10 | 10 | 72 | 25 | |
| 102100100-55 | 10 | 10 | 72 | 25 | |
| 102120120-14 | 12 | 12 | 83 | 30 | |
| 102120120-45 | 12 | 12 | 83 | 30 | |
| 102120120-55 | 12 | 12 | 83 | 30 | |
| 102120120-30 | 12 | 12 | 83 | 30 | |
| 102160160-55 | 16 | 16 | 92 | 35 | |
| 102160160-30 | 16 | 16 | 92 | 35 | |
| 102160160-14 | 16 | 16 | 92 | 35 | |
| 102160160-45 | 16 | 16 | 92 | 35 | |
| 102200200-45 | 20 | 20 | 104 | 45 | |
| 102200200-30 | 20 | 20 | 104 | 45 | |
| 102200200-14 | 20 | 20 | 104 | 45 | |
| 102200200-55 | 20 | 20 | 104 | 45 | |
