HSC-Fräser Z1 GR · gerade - rechtsschneidend
Details
112/132
- Artikelgruppe:
- 112/132
- Spanrichtung:
- Gerade
- Schneidrichtung:
- Rechts
- Spirale:
- 0
- Sockel Typ:
- HA
- Zähnezahl:
- 1
- Beschichtung:
- -

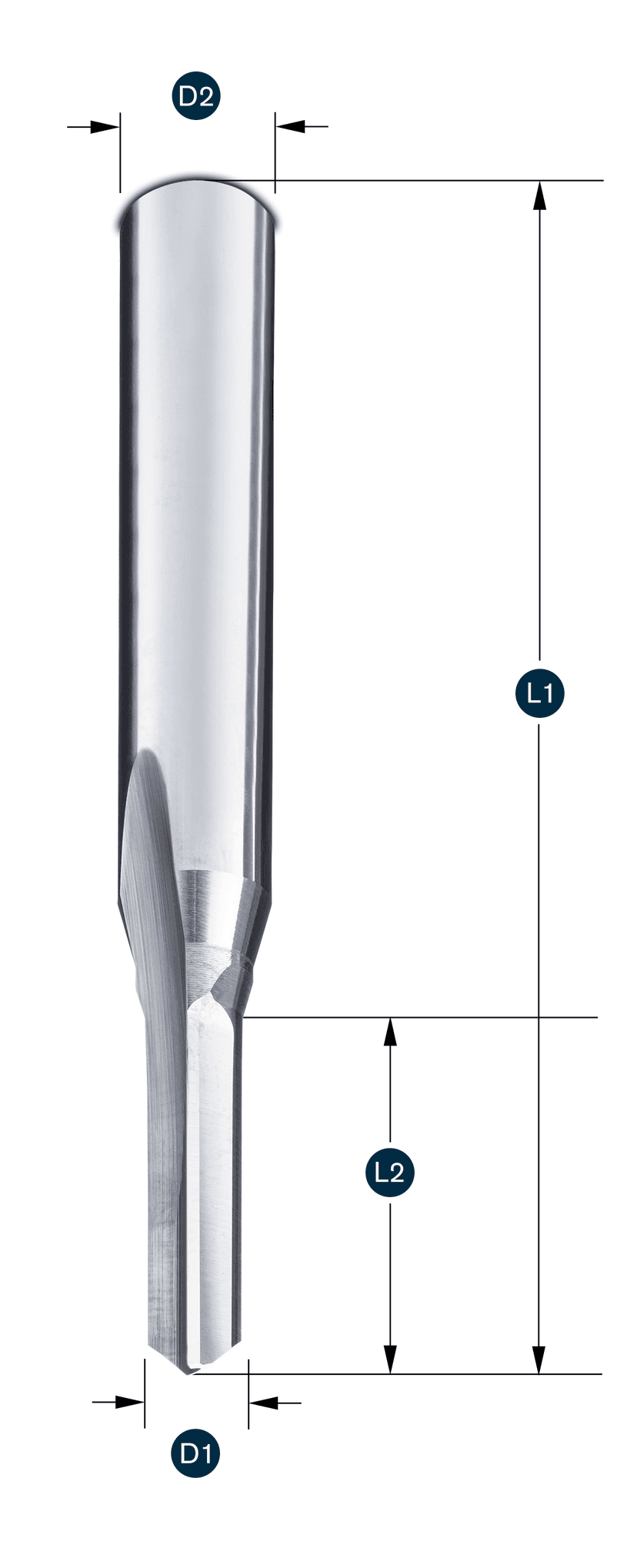

| Produktname | D1 | D2 | L1 | L2 | L3 | Aktion |
|---|
| 132KK010 | 1 | 3 | 50 | 2 | - | |
| 132010030 | 1 | 3 | 50 | 5 | - | |
| 112020020 | 2 | 2 | 40 | 10 | - | |
| 112K020020 | 2 | 2 | 50 | 6 | - | |
| 112H020020 | 2 | 2 | 60 | 12 | - | |
| 112L020020 | 2 | 2 | 75 | 14 | - | |
| 132K020030 | 2 | 3 | 40 | 8 | - | |
| 132KK020 | 2 | 3 | 50 | 3 | - | |
| 132020030 | 2 | 3 | 60 | 10 | - | |
| 132L020030 | 2 | 3 | 75 | 10 | - | |
| 112030030 | 3 | 3 | 40 | 12 | - | |
| 112KK030 | 3 | 3 | 50 | 4 | - | |
| 112K030030 | 3 | 3 | 50 | 8 | - | |
| 112H030030 | 3 | 3 | 60 | 15 | - | |
| 112L030030 | 3 | 3 | 75 | 18 | - | |
| 132K030060 | 3 | 6 | 50 | 8 | - | |
| 132030060 | 3 | 6 | 60 | 18 | - | |
| 132L030060 | 3 | 6 | 75 | 18 | - | |
| 1120317317 | 3,17 | 3,17 | 38 | 12 | - | |
| 112l0317317 | 3,17 | 3,17 | 75 | 18 | - | |
| 112040040 | 4 | 4 | 40 | 15 | - | |
| 112KK040 | 4 | 4 | 50 | 5 | - | |
| 112K040040 | 4 | 4 | 50 | 12 | - | |
| 112H040040 | 4 | 4 | 60 | 18 | - | |
| 112L040040 | 4 | 4 | 75 | 20 | - | |
| 132K040060 | 4 | 6 | 50 | 12 | - | |
| 132040060 | 4 | 6 | 60 | 20 | - | |
| 132L040060 | 4 | 6 | 75 | 20 | - | |
| 132L040080 | 4 | 8 | 95 | 20 | 30 | |
| 1120476476 | 4,76 | 4,76 | 50 | 15 | - | |
| 112L0476476 | 4,76 | 4,76 | 75 | 20 | - | |
| 112KK050 | 5 | 5 | 50 | 6 | - | |
| 112050050 | 5 | 5 | 50 | 16 | - | |
| 112H050050 | 5 | 5 | 60 | 20 | - | |
| 112L050050 | 5 | 5 | 75 | 28 | - | |
| 132K050060 | 5 | 6 | 50 | 16 | - | |
| 132050060 | 5 | 6 | 60 | 28 | - | |
| 132L050060 | 5 | 6 | 75 | 28 | - | |
| 132L050080 | 5 | 8 | 95 | 20 | 30 | |
| 112KK060 | 6 | 6 | 50 | 7 | - | |
| 112K060060 | 6 | 6 | 50 | 16 | - | |
| 112060060 | 6 | 6 | 60 | 20 | - | |
| 112L060060 | 6 | 6 | 75 | 35 | - | |
| 132K060080 | 6 | 8 | 63 | 18 | - | |
| 132060080 | 6 | 8 | 75 | 35 | - | |
| 132L060080 | 6 | 8 | 95 | 20 | 30 | |
| 1120635635 | 6,35 | 6,35 | 63 | 20 | - | |
| 112L0635635 | 6,35 | 6,35 | 75 | 35 | - | |
| 1120793793 | 7,93 | 7,93 | 63 | 22 | - | |
| 112L0793793 | 7,93 | 7,93 | 75 | 35 | - | |
| 112KK080 | 8 | 8 | 50 | 9 | - | |
| 112K080080 | 8 | 8 | 50 | 18 | - | |
| 112080080 | 8 | 8 | 63 | 22 | - | |
| 112H080080 | 8 | 8 | 75 | 30 | - | |
| 112L080080 | 8 | 8 | 100 | 40 | - | |
| 132080100 | 8 | 10 | 100 | 40 | - | |
| 1120952952 | 9,52 | 9,52 | 75 | 25 | - | |
| 112L0952952 | 9,52 | 9,52 | 100 | 40 | - | |
| 112100100 | 10 | 10 | 72 | 25 | - | |
| 112L100100 | 10 | 10 | 100 | 55 | - | |
| 112120120 | 12 | 12 | 83 | 30 | - | |
| 112127127 | 12,7 | 12,7 | 75 | 30 | - | |
| 112140140 | 14 | 14 | 83 | 30 | - | |
| 112160160 | 16 | 16 | 92 | 35 | - | |
| 112180180 | 18 | 18 | 92 | 35 | - | |
| 112200200 | 20 | 20 | 104 | 40 | - | |
