HSC-Fräser Z1 · rechtsdrall - rechtsschneidend
Details
130AL
- Artikelgruppe:
- 130AL
- Spanrichtung:
- Rechts
- Schneidrichtung:
- Rechts
- Spirale:
- 12
- Sockel Typ:
- HA
- Zähnezahl:
- 1
- Beschichtung:
- -

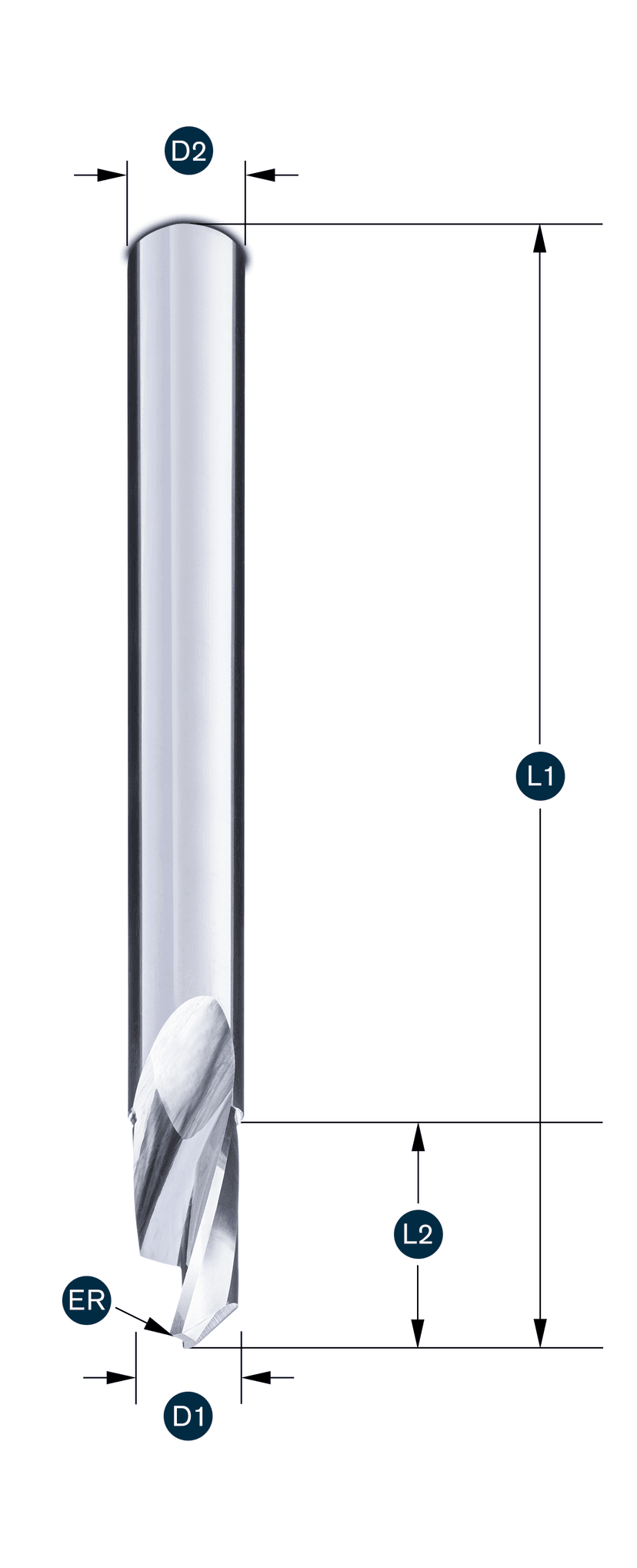

| Produktname | D1 | D2 | L1 | L2 | Aktion |
|---|
| 130ALA010030 | 1 | 3 | 40 | 4 | |
| 130ALA020030 | 2 | 3 | 40 | 5 | |
| 130ALA020 | 2 | 6 | 50 | 6 | |
| 130ALAL020 | 2 | 6 | 60 | 5 | |
| 130ALA024 | 2,4 | 6 | 40 | 8 | |
| 130AL03 | 3 | 3 | 40 | 8 | |
| 130ALA03-5 | 3 | 6 | 50 | 5 | |
| 130ALA03-8 | 3 | 6 | 50 | 8 | |
| 130ALA03-10 | 3 | 6 | 50 | 10 | |
| 130ALA03-12 | 3 | 6 | 50 | 12 | |
| 130ALAG03 | 3 | 6 | 60 | 8 | |
| 130ALRK04 | 4 | 3 | 50 | 4 | |
| 130AL04 | 4 | 4 | 40 | 10 | |
| 130ALA04-5 | 4 | 6 | 50 | 5 | |
| 130ALA04-10 | 4 | 6 | 50 | 10 | |
| 130ALA04-12 | 4 | 6 | 50 | 12 | |
| 130ALA04-14 | 4 | 6 | 50 | 14 | |
| 130ALAG04 | 4 | 6 | 60 | 8 | |
| 130ALALG04 | 4 | 8 | 75 | 10 | |
| 130AL05 | 5 | 5 | 40 | 12 | |
| 130ALAG05 | 5 | 6 | 60 | 12 | |
| 130ALALG05 | 5 | 8 | 75 | 15 | |
| 130ALRK06 | 6 | 4 | 50 | 6 | |
| 130ALG06 | 6 | 6 | 40 | 15 | |
| 130AL06-14 | 6 | 6 | 50 | 14 | |
| 130ALF06 | 6 | 6 | 60 | 8 | |
| 130AL06 | 6 | 6 | 60 | 12 | |
| 130AL06-20 | 6 | 6 | 60 | 20 | |
| 130AL06-25 | 6 | 6 | 60 | 25 | |
| 130ALK06 | 6 | 6 | 65 | 20 | |
| 130ALALG06 | 6 | 8 | 75 | 25 | |
| 130ALRK07 | 7 | 6 | 60 | 8 | |
| 130ALA07 | 7 | 8 | 75 | 25 | |
| 130ALRK08 | 8 | 6 | 63 | 8 | |
| 130ALF08 | 8 | 8 | 63 | 10 | |
| 130ALK08 | 8 | 8 | 63 | 20 | |
| 130AL08 | 8 | 8 | 75 | 16 | |
| 130ALGL08 | 8 | 8 | 75 | 25 | |
| 130ALRK09 | 9 | 8 | 63 | 10 | |
| 130ALRK10 | 10 | 8 | 60 | 10 | |
| 130ALXK10 | 10 | 10 | 72 | 25 | |
