Kugelfräser Z2 · Kopfradius R = 0,5 x d
Details
97C

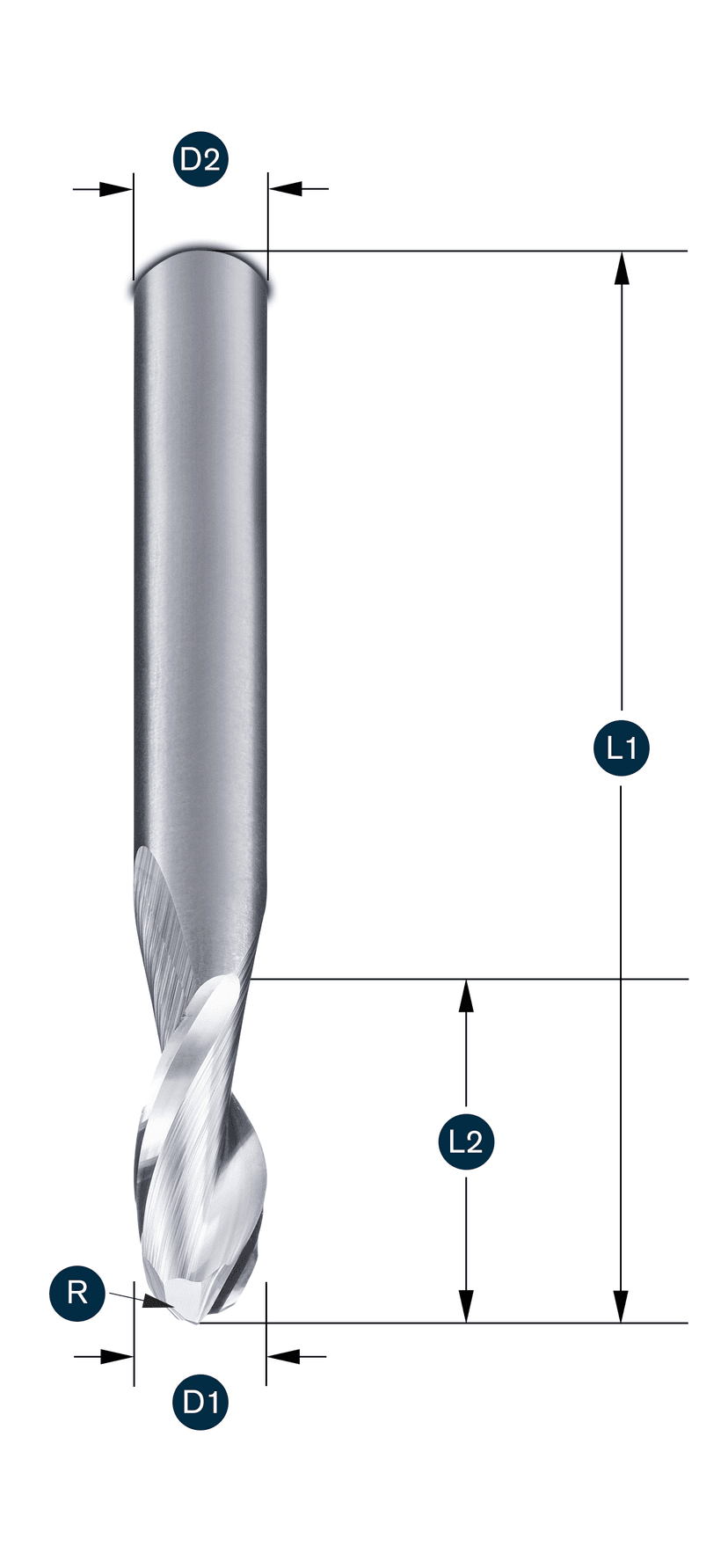

_ImageWithDimensions.png&w=828&q=75)
- Artikelgruppe:
- 97C
- Spanrichtung:
- Rechts
- Schneidrichtung:
- Rechts
- Spirale:
- 30
- Sockel Typ:
- HA
- Zähnezahl:
- 2
- Beschichtung:
- -
| Produktname | D1 | D2 | L1 | L2 | Aktion |
|---|
| 97C015 | 1,5 | 3 | 40 | 6 | |
| 97C02 | 2 | 3 | 40 | 6 | |
| 97CL02 | 2 | 3 | 75 | 15 | |
| 97CF03 | 3 | 3 | 40 | 6 | |
| 97C03 | 3 | 3 | 40 | 8 | |
| 97CXL03 | 3 | 3 | 75 | 25 | |
| 97CFSL03 | 3 | 3 | 100 | 10 | |
| 97MB03 | 3 | 6 | 57 | 3 | |
| 97CF04 | 4 | 4 | 40 | 6 | |
| 97C04 | 4 | 4 | 40 | 10 | |
| 97CL04 | 4 | 4 | 60 | 20 | |
| 97CXL04 | 4 | 4 | 75 | 32 | |
| 97CFSL04 | 4 | 4 | 100 | 12 | |
| 97MB04 | 4 | 6 | 57 | 4 | |
| 97CF05 | 5 | 5 | 50 | 8 | |
| 97C05 | 5 | 5 | 50 | 12 | |
| 97CL05 | 5 | 5 | 62 | 25 | |
| 97CFL05 | 5 | 5 | 75 | 8 | |
| 97CXL05 | 5 | 5 | 100 | 38 | |
| 97MB05 | 5 | 6 | 57 | 5 | |
| 97CFSL05 | 5 | 6 | 100 | 15 | |
| 97CL06 | 6 | 6 | 75 | 30 | |
| 97CFL06 | 6 | 6 | 100 | 10 | |
| 97CXL06 | 6 | 6 | 100 | 40 | |
| 97CFSL06 | 6 | 6 | 150 | 25 | |
| 97CFXL06 | 6 | 6 | 200 | 40 | |
| 97CXL08 | 8 | 8 | 100 | 45 | |
| 97CFXL08 | 8 | 8 | 200 | 25 | |
| 97CFSL08 | 8 | 10 | 150 | 25 | |
| 97CF10 | 10 | 10 | 72 | 10 | |
| 97C10 | 10 | 10 | 72 | 19 | |
| 97CFL10 | 10 | 10 | 100 | 10 | |
| 97CFXL10 | 10 | 10 | 200 | 50 | |
| 97CFSL10 | 10 | 12 | 150 | 25 | |
| 97CF12 | 12 | 12 | 83 | 10 | |
| 97C12 | 12 | 12 | 83 | 22 | |
| 97CXL12 | 12 | 12 | 150 | 60 | |
